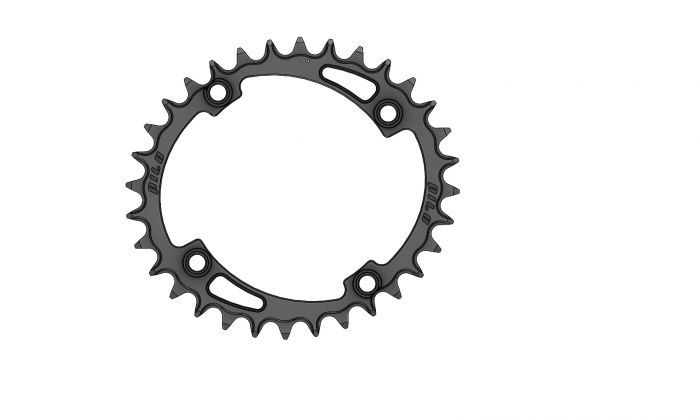

C30 - 32T Narrow wide Elliptic Chainring for 104 BCD Cranks Black Anodized

C30 Description:
PILO Precise CNC Chainring milled from 7075 T7351 especially made aircraft grade Aluminium plate,
The material we are using is made by Constellium Switzerland.
Pilo tooth geometry is highly engineered, based on DIN8196 (ISO), tested and proved to be the best, we did not invent anything, we just did it right !
That's why our CNC chainring is durable, quiet in operation, and works exceptionally well.

Compatible with:

4 bolts 104 BCD cranks.
Crankset compatibility:

Shimano :

M820 Saint , M825 Saint , M640 Zee, M645 Zee

Sram:

XX1 Eagle Quarq (power meter), GX X-Glide

Raceface:

Ride

Powe2Max:

NGeco Praxis

Chain Compatibility:

all 10, 11speed chains.

12 speed Sram and KMC chains.

Not compatible with:

Shimano hyperglide+ chains.

Sram T-Type chains.

Additional specs:
Pilo 32T elliptic profile tec specification:
lower gear equivalent to circular 30T chainring.
upper gear equivalent to circular 34T chainring.
Eccentricity: 12.5%.
Positioning relative to the crank's arm: 112 degrees counterclockwise.
Weight: only 60 grams.
Chainline: this Standard is controlled by the crank, all cranks use the same chainrings.
E-bike proved.
Finish: Hard Black Anodized.
