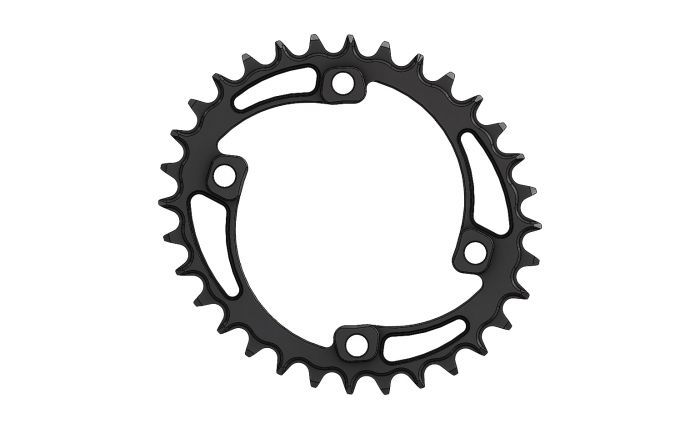

C17 - 32T Narrow wide Elliptic Chainring 96bcd Asymmetric Black Anodized
C17 - 32T Narrow wide Elliptic Chainring 96bcd Asymmetric Black Anodized
-
For 96 BCD Asymmetric Cranks
-
Fits Shimano SLX, XT, FC M7000, and M8000.
-
For use on double and single setups.
-
Fits 10,11 or 12-speed chains
PILO Precise CNC Chainring milled from 7075 T7351 billet aluminum.
C17 - 32T Narrow wide Elliptic Chainring 96bcd Asymmetric Black Anodized
crankset compatibility:
4 bolts 96 BCD Asymmetric Cranks.
Shimano:
M9000 XTR, M8000 XT, M7000 SLX, M610 Deore, MT510, MT511, MT 512, M6000, M51000, MT700, MT600, MT500.
chain compatibility:
compatible with:
10, 11and 12-speed standard chains
Not compatible with:
Sram T-Type chains.
Additional specs:
Pilo 32T elliptic profile tec specification:
lower gear equivalent to circular 30T chainring.
upper gear equivalent to circular 34T chainring.
Eccentricity: 12.5%.
Positioning relative to the crank's arm: 112 degrees counterclockwise.
Weight: only 50 grams.
Chainline: this Standard is controlled by the crank, all cranks use the same chainrings.
E-bike proved.
Finish: Hard Black Anodized.
| Aantal tanden | 32T |
|---|---|
| Elliptisch / Rond | Elliptisch |
| CRANK STANDARD | 96 BCD Asymmetric (SLX or XT) |
| Crankstelmodel | Shimano / M9000 XTR, Shimano / M8000 XT, Shimano / M7000 SLX, Shimano / M610 Deore, Shimano / MT510, Shimano / MT511, Shimano / MT512, Shimano / M6000, Shimano / M5100 Deore, Shimano / MT 700, Shimano / MT 600, Shimano / MT 500 |
